10.3.1 Moving Point Charges: Lienard-Wiechert Potentials

Suppose we have a point charge moving on some trajectory w(t) \vec w(t) . If we naively read off the retarded potential

V(r,t)=14πϵ0∫ρ(r′,tr)γdτ′ V(\vec r, t) = \frac{1}{4 \pi \epsilon_0} \int \frac{\rho(\vec r', t_r)}{\gr} \dd \tau'

might suggest that the potential is just

14πϵ0qγ \frac{1}{4 \pi \epsilon_0} \frac{q}{\gr}

But that's wrong for a subtle reason: It is true that for a point source γ \gr comes outside the integral, but the remainder

∫ρ(r′,tr)dτ′ \int \rho(\vec r', t_r) \dd \tau'

is not equal to the charge of the particle, and depends on the location of the point r \vec r . To calculate the total charge of a configuration, you must integrate ρ \rho over the entire distribution at one instant of time, but here the retardation tr=t−γ/c t_r = t - \gr / c , obliges us to evaluate ρ \rho at different times for different parts of the configuration. If the source is moving, this will give a distorted picture of the total charge. You might think that this problem would disappear for point charges, but it doesn't. In Maxwell's electrodynamics, formulated as it is in terms of charge and current densities, a point charge must be regarded as the limit of an extended charge, when the size goes to zero. And for an extended particle, no matter how small, the retardation throws a factor (1−γ^⋅v/c)−1 (1 - \vu \gr \cdot \vec v / c)^{-1} where v \vec v is the velocity of the charge at the retarded time

∫ρ(r′,tr)dτ′=q1−γ^⋅v/c \int \rho ( \vec r ', t_r) \dd \tau' = \frac{q}{1 - \vu \gr \cdot \vec v / c}

Proof: ∫ρ(r′,tr)dτ′=q1−γ^⋅v/c \int \rho ( \vec r ', t_r) \dd \tau' = \frac{q}{1 - \vu \gr \cdot \vec v / c}

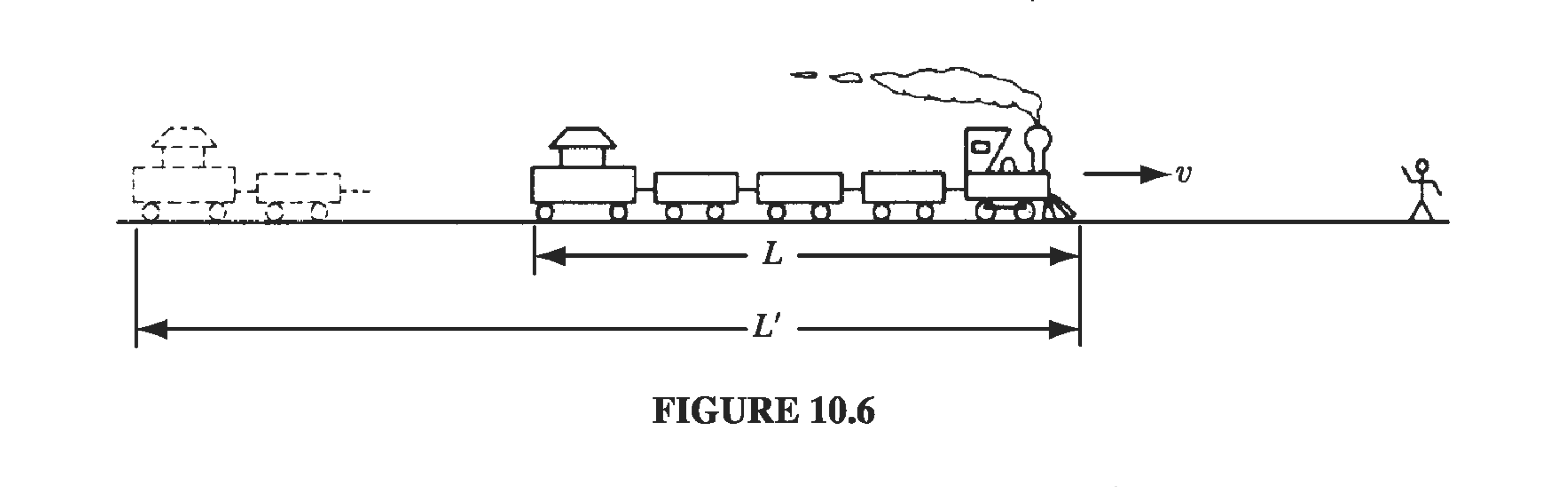

This is a purely geometrical effect, and it may help to tell the story in a less abstract context. You will not have noticed it, for obvious reasons, the the fact is that a train coming towards you looks a little longer than it really is, because the light you receive from the caboose left earlier than the light you receive simultaneously from the engine, and at that earlier time the train was farther away (Fig 10.6). In the interval it takes light from the caboose to travel the extra distance L′ L' , the train itself moves a distance L′−L L' - L

L′c=L′−LvorL′=L1−v/c \frac{L'}{c} = \frac{L' - L}{v} \quad \text{or} \quad L' = \frac{L}{1-v/c}

Figure 10.6

So approaching trains appear longer, by a factor (1−v/c)−1 (1 - v/c)^{-1} . By contrast, a train going away from you looks shorter, by a factor (1+v/c)−1 (1 + v/c)^{-1} . In general, if the train's velocity makes an angle θ \theta with your line of sight, the extra distance light from the caboose must cover is L′cos⁡θ L' \cos \theta . In the time L′cos⁡θ/c L' \cos \theta / c , then, the train moves a distance (L′−L) (L' - L)

L′cos⁡θc=L′−LvorL′=L1−vcos⁡θ/c \frac{L' \cos \theta}{c} = \frac{L' - L}{v} \quad \text{or} \quad L' = \frac{L}{1 - v \cos \theta / c}

Since the effect does not distort the dimensions perpendicular to the motion, we can easily move to 3D as

L′=l1−γ^⋅v/c L' = \frac{l}{1 - \vu \gr \cdot \vec v / c}

and the apparent volume of the train τ′ \tau' of the train is then related to the actual volume by

τ′=τ1−γ^⋅v/c \tau' = \frac{\tau}{1 - \vu \gr \cdot \vec v / c}

where γ^ \vu \gr is a unit vector from the train to the observer.

Back to our moving point charge, the retarded time is determined implicitly by

∣r−w(tr)∣=c(t−tr) | \vec r - \vec w(t_r)| = c(t - t_r)

γ=r−w(tr) \vec \gr = \vec r - \vec w(t_r)

It follows that

V(r,t)=14πϵ0qc(γc−γ⋅v) V( \vec r, t) = \frac{1}{4 \pi \epsilon_0} \frac{qc}{(\gr c - \vec \gr \cdot \vec v)}

where v \vec v is the velocity of the charge at the retarded time, and γ \vec \gr is the vector from the retarded position to the field point r \vec r . Moreover, since the current density is ρv \rho \vec v , the vector potential is

A(r,t)=μ04π∫ρ(r′,tr)v(tr)γdτ′=μ04πvγ∫ρ(r′,tr)dτ′=μ04πqcv(γc−γ⋅v)=vc2V(r,t) \begin{aligned} \vec A ( \vec r, t) & = & \frac{\mu_0}{4 \pi} \int \frac{\rho(\vec r', t_r) \vec v(t_r)}{\gr} \dd \tau' \\ & = & \frac{\mu_0}{4 \pi} \frac{\vec v}{\gr} \int \rho(\vec r', t_r) \dd \tau' \\ & = & \frac{\mu_0}{4 \pi} \frac{qc \vec v}{(\gr c - \vec \gr \cdot \vec v)} \\ & = & \frac{\vec v}{c^2} V(\vec r, t) \end{aligned}

These are the Lienard-Wiechert potentials for a moving point charge.

10.3.2: The Fields of a Moving Point Charge

After a great deal of vector calculus, starting from the Lienard-Wiechert potentials for a moving point charge, you can work out the fields

E=−∇V−∂A∂tB=∇×A \vec E = - \grad V - \pdv{\vec{A}}{t} \qquad \vec B = \curl \vec A

Because of all the various dependencies on r,r′,γ \vec r, \vec r', \vec \gr , the integration is tricky, but eventually the result is

E(r,t)=q4πϵ0γ(γ⋅u)3[(c2−v2)u+γ×(u×a)] \vec E(\vec r, t) = \frac{q}{4 \pi \epsilon_0} \frac{ \gr}{(\vec \gr \cdot \vec u)^3} \left[ (c^2 - v^2) \vec u + \gr \cross ( \vec u \cross \vec a) \right]

where we introduce the vector

u≡cγ^−v \vec u \equiv c \vu \gr - \vec v

and a=∂v∂t \vec a = \pdv{\vec v}{t} is the acceleration of the particle at the retarded time.
