9.4 - Absorption and Dispersion

9.4.1 Electromagnetic Waves in Conductors

When we formulated our description of how electromagnetic waves move through linear media, we relied on the stipulation that the free charge density ρf \rho_f and free current density Jf \vec J _f were zero. In the case of conductors, we're going to need to re-visit that assumption.

As a refresher, when we last took a good look at conductors we had just moved beyond the electrostatic picture. In statics, we could assume that the field within a conductor is always zero, because any field would eventually (quickly) cause the free changes to arrange in such a way as to cancel the field. Now, we want to see how the conductor responds when we have a varying electric field.

So, what do we already know about electric fields in matter?

E=ρfϵ(Gauss’ Law in media) \div \vec E = \frac{\rho_f}{\epsilon} \qquad \text{(Gauss' Law in media)}

Jf+ρft=0(Continuity) \div \vec J _f + \pdv{\rho_f}{t} = 0 \qquad \text{(Continuity)}

Jf=σE(Ohm’s Law) \vec J_f = \sigma \vec E \qquad \text{(Ohm's Law)}

(Jfσ)=ρfϵ \rightarrow \div \left( \frac{\vec J _f}{\sigma} \right) = \frac{\rho_f}{\epsilon}

1σ(ρft)=ρfϵ \rightarrow \frac{1}{\sigma} \left( - \pdv{\rho_f}{t} \right) = \frac{\rho_f}{\epsilon}

ρft=σϵρf \rightarrow \pdv{\rho_f}{t} = - \frac{\sigma}{\epsilon} \rho_f

We see differential equations like this all the time - it's the equation for an exponential decay. The decay timescale of the free charge density is

τ1/e=ϵσ \tau_{1/e} = \frac{\epsilon}{\sigma}

Applying to the situation of a very good conductor where σ \sigma is very large, e.g. copper, the time constant is around 1019 10^{-19} seconds. This means that if a little bit of free charge has accumulated at any time, then from that point charge will flow to suppress that field on the timescale of 1019 10^{-19} seconds. So, for the vast majority of radiation (wave period up to 1018 \approx 10^{-18} ), the time constant is fast enough that the conductor is effectively impermeable, and all our previous descriptions of conductors are still sound. Namely, the Maxwell equations look like

E=0 \div \vec E = 0

B=0 \div \vec B = 0

×E=Bt \curl \vec E = - \pdv{\vec B}{t}

×B=μϵEt+μσE(σE=J) \curl \vec B = \mu \epsilon \pdv{\vec E}{t} + \mu \sigma \vec E \qquad (\sigma \vec E = \vec J)

As before, to get our wave equations, apply ×(×E) \curl (\curl \vec E) and ×(×B) \curl (\curl \vec B)

(E)2E=×(Bt)=t(×B) \grad (\div \vec E) - \laplacian \vec E = - \curl (\pdv{\vec B}{t}) = - \pdv{}{t} (\curl \vec B)

2E=μϵ2Et2μσEt \rightarrow - \laplacian \vec E = - \mu \epsilon \frac{\partial^2 \vec E}{\partial t^2} - \mu \sigma \pdv{\vec E}{t}

2E=μϵ2Et2+μσEt \rightarrow \laplacian \vec E = \mu \epsilon \frac{\partial ^2 \vec E}{\partial t^2} + \mu \sigma \pdv{\vec E}{t}

As σ0 \sigma \rightarrow 0 , we recover the wave equation for linear media as we'd expect. We now have a "lossy" wave equation, since there is attenuation of the wave over time.

From ×(×B) \curl ( \curl \vec B) we get

2B=μϵ2Bt2+μσBt \laplacian \vec B = \mu \epsilon \frac{\partial^2 \vec B}{\partial t^2} + \mu \sigma \pdv{\vec B}{t}

Recall that for σ=0 \sigma = 0 the wave equation supports waves of the form ei(krωt) e ^{i(\vec k \cdot \vec r - \omega t)} . For propagation along the z-axis, ei(kzωt) e^{i(kz - \omega t)} . To solve the lossy version, we'll look for solutions by introducing an imaginary component to k k in order to satisfy the damping term.

k~=k+iκ \rightarrow \tilde{k} = k + i\kappa

For the one-dimensional case, let's plug our new wave solution in

2E=μϵ2Et2+μσEt \laplacian \vec E = \mu \epsilon \frac{\partial ^2 \vec E}{\partial t^2} + \mu \sigma \pdv{\vec E}{t}

k~2=μϵ(ω2)+μσ(iω) \rightarrow - \tilde{k}^2 = \mu \epsilon (- \omega^2) + \mu \sigma (-i \omega)

k2κ2+2ikκ=μϵω2+iμσω \rightarrow k^2 - \kappa ^2 + 2 i k \kappa = \mu \epsilon \omega^2 + i \mu \sigma \omega

k2κ2=μϵω2kκ=μσω \rightarrow k^2 - \kappa ^2 = \mu \epsilon \omega \qquad 2 k \kappa = \mu \sigma \omega

k=μσω2κ(μσω2κ)2κ2=μϵω2 \rightarrow k = \frac{ \mu \sigma \omega}{2 \kappa} \qquad \left( \frac{\mu \sigma \omega}{2 \kappa} \right)^2 - \kappa ^2 = \mu \epsilon \omega^2

κ4+μϵω2κ2(μσω2)2=0 \rightarrow \kappa ^4 + \mu \epsilon \omega^2 \kappa^2 - \left( \frac{\mu \sigma \omega}{2} \right)^2 = 0

We just write down the solution to the quadratic equation in κ \kappa

κ=μϵω2±(μϵω2)2+(μσω)22 \kappa = \sqrt{\frac{- \mu \epsilon \omega^2 \pm \sqrt{(\mu \epsilon \omega^2)^2 + (\mu \sigma \omega)^2}}{2}}

Because we enforce that κ \kappa is real, and all of the parameters within the square root are positive, we need to choose the + + sign

κ=(μϵω2)2+(μσω)2μϵω22 \kappa = \sqrt{\frac{\sqrt{(\mu \epsilon \omega^2)^2 + (\mu \sigma \omega)^2} - \mu \epsilon \omega^2 }{2}}

κ=μϵω221+(σϵω)21 \rightarrow \kappa = \sqrt{\frac{\mu \epsilon \omega^2}{2}} \sqrt{ \sqrt{ 1 + \left( \frac{\sigma}{\epsilon \omega} \right)^2 } - 1 }

κ=ωϵμ2[1+(σϵω)21]1/2 \rightarrow \kappa = \omega \sqrt{ \frac{\epsilon \mu}{2} } \left[ \sqrt{ 1 + \left( \frac{\sigma}{\epsilon \omega} \right)^2 } - 1 \right] ^{1/2}

Plugging κ \kappa back in to our expression for k k and doing some algebraic manipulation,

k=ωϵμ2[1+(σϵω)2+1]1/2 k = \omega \sqrt{ \frac{\epsilon \mu}{2}} \left[ \sqrt{1 + \left( \frac{\sigma}{\epsilon \omega} \right) ^2 } + 1 \right]^{1/2}

So the fields look like

E(z,t)=E0eκzei(kzωt) \vec E ( z, t) = \vec{E_0} e^{- \kappa z} e^{i(kz - \omega t)}

B(z,t)=B0eκzei(kzωt) \vec B ( z, t) = \vec{B_0} e^{- \kappa z} e^{i(kz - \omega t)}

As a check, if σ0 \sigma \rightarrow 0 , κ0 \kappa \rightarrow 0 , kωϵμ22=ωϵμ=ω/v k \rightarrow \omega \sqrt{ \frac{\epsilon \mu}{2}} \sqrt{2} = \omega \sqrt{ \epsilon \mu} = \omega / v and we are back to the linear medium we started with. In the case of a really good conductor (where 1/ωϵ/σ1 / \omega \gg \epsilon / \sigma ), both k k and κ \kappa will converge

kκωϵμ2[σϵω]1/2=ωϵμ2σϵ=ωμσ2 k \approx \kappa \rightarrow \omega \sqrt{\frac{\epsilon \mu}{2}} \left[ \frac{\sigma}{\epsilon \omega} \right] ^{1/2} \\ = \sqrt{ \omega \frac{\epsilon \mu}{2} \frac{\sigma}{\epsilon}} \\ = \sqrt{ \frac{ \omega \mu \sigma}{2}}

For a good conductor, both E \vec E and B \vec B get damped over a distance scale given by 1/κ 1/\kappa , which can be quite short. Since k κ k ~ \kappa we can relate this "skin depth" to the wavelength

λ=2πkd=1κ=λ2π \lambda = \frac{2\pi}{k} \rightarrow d = \frac{1}{\kappa} = \frac{\lambda}{2 \pi}

Before, we had a real proportionality factor between E0 \vec{E_0} and B0 \vec{B_0} . If we go through the same motions here with our new lossy solution,

×E=BtB0=k~ωE0 \curl \vec E = - \pdv{\vec B}{t} \rightarrow \vec B _0 = \frac{\tilde{k}}{\omega} \vec E _0

Because k~ \tilde{k} is a complex number, this ratio will also be a complex number. For our phasor expressions for the fields, this amounts to a phase shift between the two.

In conductors, there is a phase difference between the E \vec E and B \vec B fields. For a good conductor, the phase shift is 45 45 ^\circ

9.4.2: Reflection at a Conducting Surface

In this situation, we consider a wave traveling through a linear medium (or vacuum) impinging on a conducting surface at a normal to the surface. We can go ahead and write down the general boundary conditions:

(i)ϵ1E1ϵ2E2=σf(ii)B1B2=0(iii)E1E2=0(iv)1μ1B11μ2B2=kf×n^ \begin{aligned} (i) & \epsilon_1 E_{1}^\perp - \epsilon_2 E_2 ^\perp = \sigma_f \\ (ii) & B_{1}^\perp - B_2 ^\perp = 0 \\ (iii) & E_{1}^\parallel - E_2 ^\parallel = 0 \\ (iv) & \frac{1}{\mu_1}B_{1}^\parallel - \frac{1}{\mu_2} B_2 ^\parallel = \vec{k_f} \cross \vu n \end{aligned}

For a conductor obeying Ohm's law Jf=σE \vec{J_f} = \sigma \vec E . So, since E \vec E is finite, we will have a finite Jf \vec{J}_f , so we have kf \vec{k}_f must go to zero, which takes care of the right hand side of equation (iv). Since we know that E \vec{E} and B \vec{B} are transverse to the wave,

E1=E2=0σf=0 E_1 ^\perp = E_2 ^\perp = 0 \rightarrow \sigma_f = 0

Putting all of these together, we have the boundary conditions for a conducting-linear interface:

(i)E1E2=0(ii)B1B2=0(iii)E1E2=0(iv)1μ1B11μ2B2=0 \begin{aligned} (i) & E_{1}^\perp - E_2 ^\perp = 0 \\ (ii) & B_{1}^\perp - B_2 ^\perp = 0 \\ (iii) & E_{1}^\parallel - E_2 ^\parallel = 0 \\ (iv) & \frac{1}{\mu_1}B_{1}^\parallel - \frac{1}{\mu_2} B_2 ^\parallel = 0 \end{aligned}

For an incident wave that looks like E~I=E~0,Iei(k1zωt)x^ \tilde{\vec{E}}_I = \tilde{E}_{0, I} e^{i (k_1 z - \omega t)} \vu x and BI~=k1ωE~0,Iei(k1zωt)y^ \tilde{\vec{B_I}} = \frac{k_1}{\omega} \tilde{E}_{0,I} e^{i (k_1 z - \omega t)} \vu y , we will have:

a reflected wave

ER~=E~0,Iei(k1zωt)x^BR~=k1ωE~0,Iei(k1zωt)y^ \tilde{\vec{E_R}} = \tilde{E}_{0, I} e^{i (-k_1 z - \omega t)} \vu x \\ \tilde{\vec{B_R}} = -\frac{k_1}{\omega} \tilde{E}_{0,I} e^{i (-k_1 z - \omega t)} \vu y

and a transmitted wave

ET~=E~0,Tei(k1zωt)x^BT~=k2ωE~0,Tei(k2zωt)y^ \tilde{\vec{E_T}} = \tilde{E}_{0, T} e^{i (-k_1 z - \omega t)} \vu x \\ \tilde{\vec{B_T}} = -\frac{k_2}{\omega} \tilde{E}_{0,T} e^{i (k_2 z - \omega t)} \vu y

Apply boundary condition at z=0 z = 0 and set the time phase factors equal to each other (as they must be)

E~0,I+E~0,R=E~0,T \tilde{E}_{0,I} + \tilde{E}_{0,R} = \tilde{E}_{0,T}

1μ1v1E~0,I1μ1v1E~0,R=1μ2k2~ωE~0,T \frac{1}{\mu_1 v_1} \tilde{E}_{0,I} - \frac{1}{\mu_1 v_1} \tilde{E}_{0,R} = \frac{1}{\mu_2} \frac{\tilde{k_2}}{\omega} \tilde{E}_{0,T}

E~0,IE~0,R=β~E~0,Tβ~=μ1v1μ2ωk2~ \tilde{E}_{0,I} - \tilde{E}_{0,R} = \tilde{\beta} \tilde{E}_{0,T} \qquad \tilde{\beta} = \frac{\mu_1 v_1}{\mu_2 \omega} \tilde{k_2}

Manipulating these together,

E~0,T=(21+β~)E~0,I \tilde{E}_{0,T} = \left( \frac{2}{1 + \tilde{\beta}} \right) \tilde{E}_{0,I}

E~0,R=(1β~1+β~)E~0,I \tilde{E}_{0,R} = \left( \frac{1 - \tilde{\beta}}{1 + \tilde{\beta}} \right) \tilde{E}_{0,I}

For a good conductor (where σ/ϵω1 \sigma / \epsilon \omega \gg 1 ), β~ \tilde{\beta} will approach

β~μ1v1μ2ωωσμ22(1+i) \tilde{\beta} \rightarrow \frac{\mu_1 v_1}{\mu_2 \omega}\sqrt{ \frac{ \omega \sigma \mu_2}{2} } (1 + i)

For σ \sigma \rightarrow \infty (a perfect conductor),

E~0,RE~0,I \tilde{E}_{0,R} \rightarrow - \tilde{E}_{0,I}

E~0,T0 \tilde{E}_{0,T} \rightarrow 0

Which is to say, a perfect conductor is a perfect reflector with a 180 180^\circ phase change at the interface. The obvious applications are silvered mirrors and fully metal mirrors.

9.4.3: The Frequency Dependence of Permittivity

For electromagnetic radiation, dispersion is a measure of the frequency response of a propagating wave on the permittivity, permeability, and conductivity of the medium it is propagating through.

Permittivity:ϵϵ(ω) \text{Permittivity:} \quad \epsilon \rightarrow \epsilon(\omega)

The majority of radiation that we interact with is not monochromatic, and every real radiation source has some non-zero linewidth. The spectrum of frequencies contained in the radiation will broaden and "disperse" depending on the dispersion relation of the material the wave propagates through. This makes it very important to consider the dispersion properties of whatever material a wave is propagating through, no matter what the source is.

As usual, we'll start with the simplest case: the linear relation

Linear dispersion in free space: ω=ck \text{Linear dispersion in free space: } \quad \omega = ck

Actually, many real media are have very nearly a linear dispersion relationship. Since the wave velocity depends on ϵ \epsilon and μ \mu , we now have a velocity which is a function of frequency. In general, there are two velocities that we care about: the wave/phase velocity v=ω/k v = \omega / k and the group velocity vg=dωdk v_g = \dv{\omega}{k} . We can think of the phase velocity as the velocity at which each individual sinusoidal component of a wave packet travels, while the group velocity defines the speed of the overall packet/envelope.

What gives rise to the real relationship? Well, as a wave propagates through some medium, the atoms that make up the medium will have their own resonances depending on their state. In general, any mildly complex medium will have many many resonances, and the shape of the permittivity curve will be defined by the full composition of all of the resonances and can be quite complicated.

Because the mass of the electron is so much smaller than the mass of the nucleus, the electron responds as if it were tied to a central potential like a spring with damping.

md2xdt2+mγdxdt+mω02x=qE0cos(ωt) m \frac{d^2 x}{dt^2} + m \gamma \dv{x}{t} + m \omega_0 ^2 x = q E_0 \cos (\omega t)

where γ \gamma is a damping term. There are many potential mechanisms by which the system can lose energy, and we lump them all together into the simple damping term.

Setting up shop back in our phasor space,

xRe[x~] x \equiv \text{Re}\left[ \tilde{x} \right]

d2x~dt2+γdx~dt+mω02x~=qE0meiωt \frac{d^2 \tilde{x}}{dt^2} + \gamma \dv{\tilde{x}}{t} + m \omega_0 ^2 \tilde{x} = \frac{q E_0}{m} e^{-i \omega t}

Plugging in the form for x~ \tilde{x} we know we're going to get (a response with the same frequency as the driving field)

x~=x~0eiωt \tilde{x} = \tilde{x}_0 e^{-i \omega t}

[ω2iγω+ω02]x~eiωt=qE0meiωt \left[ - \omega^2 - i \gamma \omega + \omega_0 ^2 \right] \tilde{x} e^{-i \omega t} = \frac{q E_0}{m} e^{-i \omega t}

x~0=qE0/m(ω02ω2)iγωx0=Re[x~0] \rightarrow \tilde{x}_0 = \frac{q E_0 / m}{(\omega_0 ^2 - \omega ^2 ) - i \gamma \omega } \qquad x_0 = \text{Re}[\tilde{x}_0]

What's the dipole moment of the system of the electron moving up and down with the wave? We will see that the dipole moment can be connected to the permittivity of the system through the polarization, and from there we'll get our dispersion relation.

p~(t)=qx~(t)=q2/m(ω02ω2)iγωE0eiωt \begin{aligned} \tilde{p}(t) & = & q \tilde{x}(t) \\ & = & \frac{q^2 / m}{(\omega_0 ^2 - \omega ^2 ) - i \gamma \omega} E_0 e^{-i \omega t} \end{aligned}

If we assume we have N molecules per unit volume and multiple resonances j:ωj,γj j : \omega_j, \gamma _j , and oscillator "strength" fj f_j (where we lump together the oscillation response of the resonance), the polarization P is

P~(t)=Nq2m(jfi(ωj2ω2)iγjω)E~ \tilde{\vec{P}}(t) = \frac{N q^2}{m} \left( \sum_j \frac{f_i}{(\omega_j ^2 - \omega ^2) - i \gamma_j \omega } \right) \tilde{\vec{E}}

Recall the relation between polarization and susceptibility

P=ϵ0χeE \vec{P} = \epsilon_0 \chi_e \vec{E}

D=ϵE=ϵ0(1+χe)E=ϵ0E+P \vec{D} = \epsilon \vec{E} \\ = \epsilon_0 (1 + \chi_e) \vec{E} \\ = \epsilon_0 \vec{E} + \vec{P}

And we defined the relative permittivity

ϵ~r=ϵ~ϵ0=1+χ~e=1+Nq2mϵ0(jfi(ωj2ω2)iγjω)=n2 (for non-magnetic media) \tilde{\epsilon}_r = \frac{\tilde{\epsilon}}{\epsilon_0} \\ = 1 + \tilde{\chi}_e \\ = 1 + \frac{N q^2}{m \epsilon_0} \left( \sum_j \frac{f_i}{(\omega_j ^2 - \omega ^2) - i \gamma_j \omega }\right) \\ = n^2 \text{ (for non-magnetic media)}

So that's how the electron response to a wave can be connected with the index of refraction, but we've got a complex permittivity & dielectric constant. What does the generalized wave equation tell us about how this changes our solutions?

2E~=ϵ~μ02Et2 \laplacian \tilde{\vec{E}} = \tilde{\epsilon} \mu_0 \frac{\partial ^2 \vec{E}}{\partial t^2}

Again, insert a plane wave solution

E~=E~0ei(k~zωt) \tilde{\vec{E}} = \tilde{\vec{E}}_0 e^{i(\tilde{k} z - \omega t)}

k~2=ϵ~μ0(ω2) \rightarrow \quad - \tilde{k}^2 = \tilde{\epsilon} \mu_0 (- \omega ^2)

k~2=ϵ~μ0ω2 \rightarrow \tilde{k}^2 = \tilde{\epsilon} \mu_0 \omega^2

and

k~=ϵ~μ0ω=k+iκ \tilde{k} = \sqrt{\tilde{\epsilon} \mu_0} \omega = k + i \kappa

When n21 n^2 - 1 is small compared to 1, then we can expand n n as

n=n~=1+Nq22mϵ0jfj(ωj2ω02)iγjω n = \tilde{n} = 1 + \frac{Nq^2}{2m\epsilon_0} \sum_j \frac{f_j}{(\omega _j ^2 - \omega_0 ^2 ) - i \gamma_j \omega}

E~=E~0eκzei(kzωt) \tilde{\vec{E}} = \tilde{\vec{E}}_0 e^{- \kappa z} e^{i(kz - \omega t)}

"n21 n^2 - 1 is small compared to 1" just means the larger term on the RHS is small compared to 1, and this is true for many gaseous systems resulting in an index of refraction close to 1. We often compare the frequency response to the so-called absorption coefficient α=2κ \alpha = 2 \kappa , because the intensity is proportional to E2 E^2 which goes as e2κz e^{-2 \kappa z} so the characteristic width of the distribution is 2κ 2 \kappa . For gases (diffuse media),

α=2κNq2ω2mϵ0cjfjγj(ωj2ω2)2+γj2ω2 \alpha = 2 \kappa \approx \frac{N q^2 \omega^2}{m \epsilon_0 c} \sum_j \frac{ f_j \gamma _j}{(\omega_j ^2 - \omega ^2 ) ^2 + \gamma _j ^2 \omega ^2}

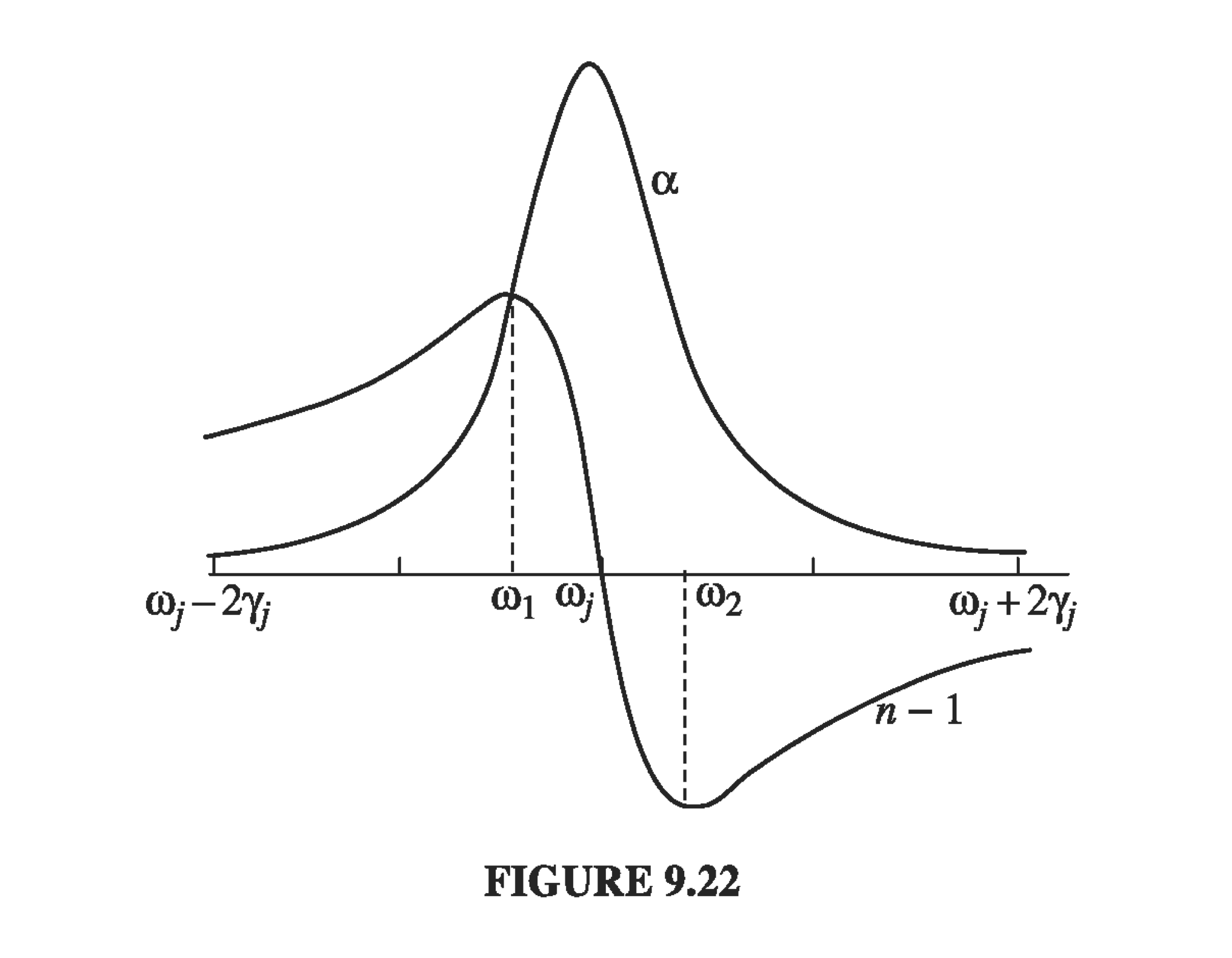

Figure 9.22
